Your smart light – smooth and perfectly round.

Your smart light – smooth and perfectly round.

You come home, it’s already dark – and yet everything is brightly lit. The L 595 S switches on automatically as soon as you step into its detection zone, reliably lighting your way. The modern sensor technology ensures the light only shines when it’s really needed – energy-saving and convenient. The large, mouth-blown glass globe creates an elegant, timeless look and spreads soft, atmospheric light on your façade. The discreetly coloured 180° sensor detects movement up to 10 metres away. With the E27 socket, you can use modern bulbs up to 60 W and illuminate your outdoor area evenly and atmospherically. Both the time and twilight settings can be adjusted – for just the right light, night after night.

Your smart light – smooth and perfectly round.

You come home, it’s already dark – and yet everything is brightly lit. The L 595 S switches on automatically as soon as you step into its detection zone, reliably lighting your way. The modern sensor technology ensures the light only shines when it’s really needed – energy-saving and convenient. The large, mouth-blown glass globe creates an elegant, timeless look and spreads soft, atmospheric light on your façade. The discreetly coloured 180° sensor detects movement up to 10 metres away. With the E27 socket, you can use modern bulbs up to 60 W and illuminate your outdoor area evenly and atmospherically. Both the time and twilight settings can be adjusted – for just the right light, night after night.

Icon

max. 60 W E27

Icon

infrared sensor 180°

Icon

max. 10 m

Icon

IP44

Icon

70° vertical

Icon

2 - 2000 lux

Icon

8 sec - 35 min

Icon

ideal 2 m

Icon

energy saving

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Article number: 094959

  • PU1, net weight: 1,61 kg

  • With motion detector: Yes

  • Output: 60 W

  • Package content: 1

Product dimension

General

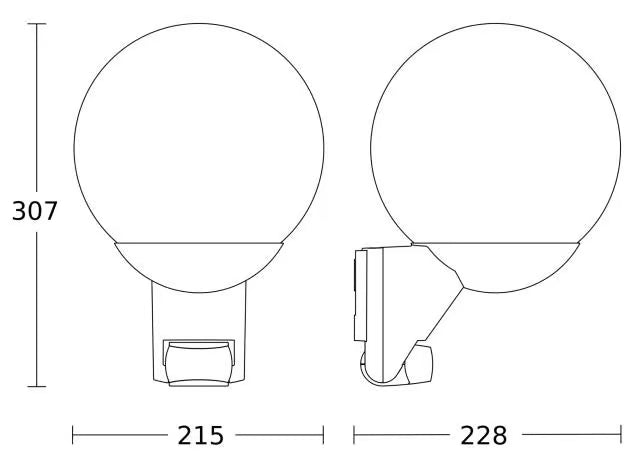

Dimensions (L x W x H)229 x 215 x 312 mm
With lampNo
Manufacturer's Warranty3 years
Settings viaPotentiometers
With remote controlNo
VersionAnthracite
PU1, EAN4007841094959
Application, placeOutdoors
Application, roomoutdoors, front door, all round the building, terrace / balcony, courtyard & driveway
ColourAnthracite
Package content1

Fixation / mounting

Installation sitewall

Housing

Impact resistanceIK03
IP-ratingIP44
Protection classII
Ambient temperaturefrom -20 up to 40 °C
Housing materialPlastic
Cover materialGlass transparent

Electrical equipment

Mains power supply230 – 240 V / 50 Hz
Output60 W
Power consumption0,55 W

Sensor technology

Mounting height max.3,00 m
Slave modeselectableNo
Sneak-by guardYes
Capability of masking out individual segmentsYes
Electronic scalabilityNo
Mechanical scalabilityNo
Reach, radialr = 3 m (14 m²)
Reach, tangentialr = 10 m (157 m²)
Cover materialsticker
Optimum mounting height2 m
Detection angle180 °

Luminaire

Photo-cell controllerYes
LampAll-purpose lamp
BaseE27
Soft light startNo

General information

Article number094959
European Article Number (EAN)4007841094959

Functions

Twilight setting2 – 2000 lx
Time setting8 s – 35 Min.
Basic light level functionNo

Connection

InterconnectionNo

General information

Product categorySensor-switched outdoor light
