L 14 S with motion detector

Product Code: 094263

Modern outdoor light with motion detector and house number sticker
Made of UV-resistant, impact-resistant material according to IK05 for a long service life
Automatic light thanks to 180° infrared sensor in housing colour with up to 10 m detection on movement
Detection area and range can be individually limited using the cover stickers supplied and the swivelling sensor (90° vertical)
With E27 socket for energy-saving lamps or LED bulbs with max. 15 W (not included in delivery)
Incl. house number arch and mounting accessories - plastic-free packaging

Product variants

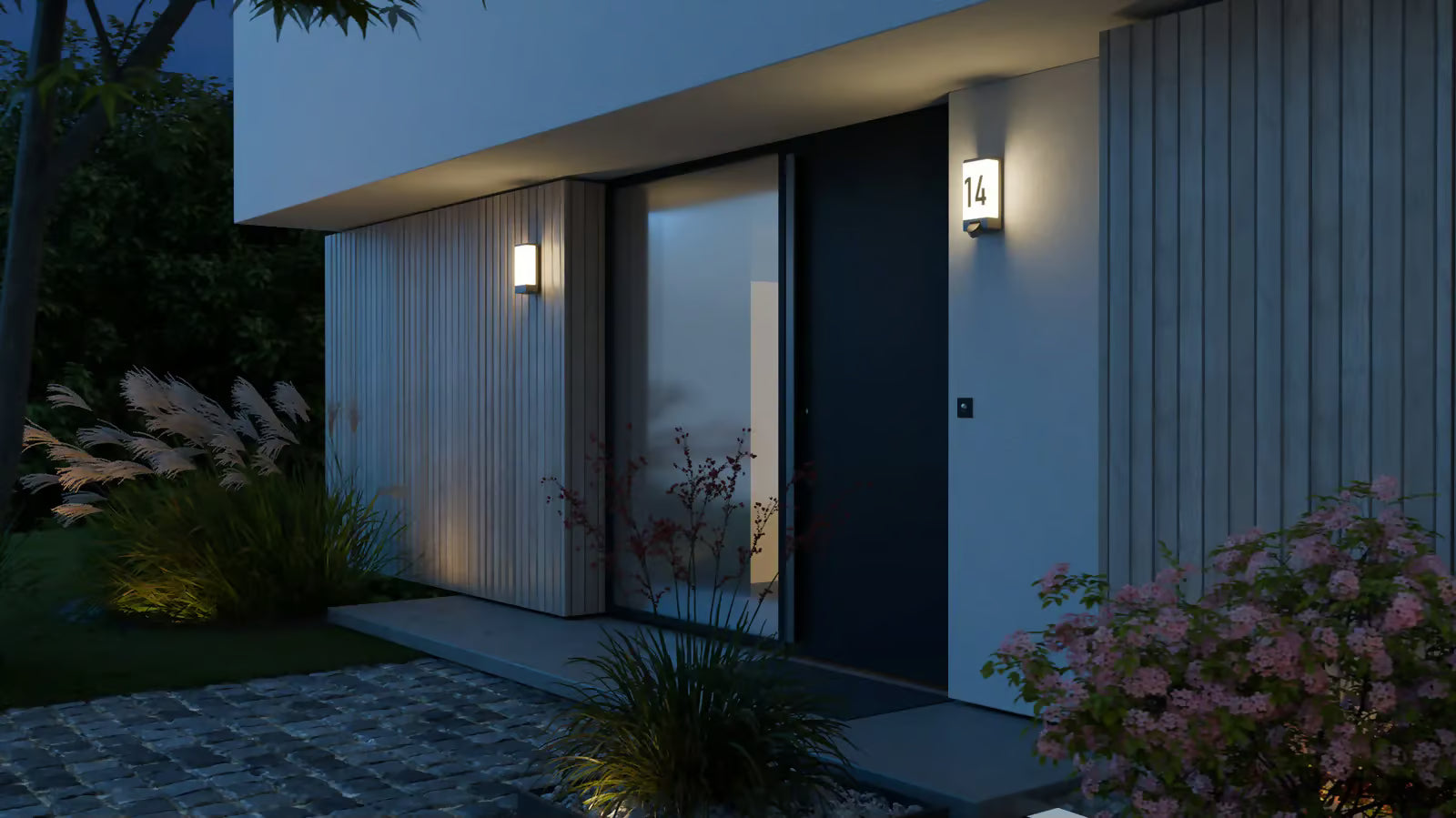

Clearly visible. Thoughtfully designed.

The L 14 S outdoor sensor light combines clean, timeless design with a clearly visible house number and smart lighting on motion detection. The swivelling 180° sensor in housing colour reacts reliably and ensures light is provided exactly when needed. Made from impact-resistant and UV-resistant materials, the L 14 S is also a visual highlight for years to come. The E27 socket offers flexibility in choosing a light source. And thanks to the included house number template, everyone knows they’re in the right place. For those who value form, function and visibility. Also available without sensor.

max. 15 W E27

outdoor light

infrared sensor 180°

max. 10 m

2 - 2000 lux

8 sec - 35 min

90° vertical

Light source replaceable by end user

Control gear not exchangeable

Application, place: Outdoors
Installation: Surface wiring
Article number: 094263
PU1, net weight: 0,682 kg
With motion detector: Yes
Interconnection via: Cable
Output: 15 W

General

Dimensions (L x W x H)	125 x 125 x 275 mm
With lamp	No
Manufacturer's Warranty	3 years
Settings via	Potentiometers
With remote control	No
Version	with motion detector
PU1, EAN	4007841094263
Application, place	Outdoors
Application, room	outdoors
Colour	Anthracite
Colour, RAL	7016

Fixation / mounting

Installation site

wall

Housing

Impact resistance	IK05
IP-rating	IP44
Protection class	II
Ambient temperature	from -20 up to 40 °C
Housing material	Plastic
Cover material	PMMA, opal

Electrical equipment

Mains power supply	230 – 240 V / 50 Hz
Output	15 W

Sensor technology

Mounting height max.	3,00 m
Slave modeselectable	No
Capability of masking out individual segments	Yes
Electronic scalability	No
Mechanical scalability	No
Reach, radial	r = 3 m (14 m²)
Reach, tangential	r = 10 m (157 m²)
Cover material (sensor)	sticker
Optimum mounting height	2 m
Detection angle	180 °

Luminaire

Photo-cell controller	Yes
Base	E27
Soft light start	No

General information

Article number	094263
European Article Number (EAN)	4007841094263

Functions

Functions	Motions sensor, Light sensor
Twilight setting	2 – 2000 lx
Time setting	8 s – 35 Min.
Basic light level function	No
Main light adjustable	No
Twilight setting TEACH	No

Connection

Interconnection	Yes
Type of interconnection	Sensor/slave
Interconnection via	Cable

General information

Product category

Sensor-switched outdoor light
